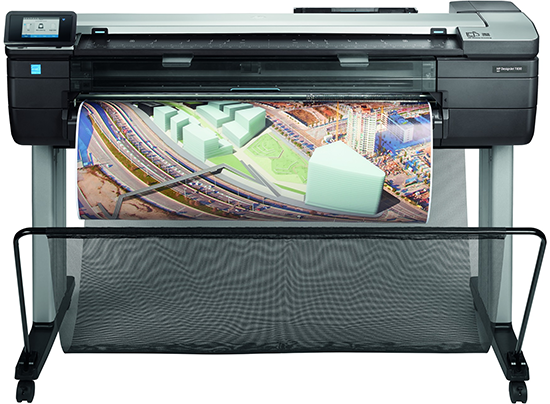

HP Designjet T830 MFP - 36 inch
Print/scan/copy. Immediately update all your partners on project review results with the most compact large-format MFP.
HP Designjet T830 - 36 inch
  • Robust and compact multifunction printer handles activity at challenging sites such as construction sites
  • A1/D-size prints delivered in 25 seconds
  • Choose from 40 to 300 mL HP ink cartridges to fit your print volume, large supplies can reduce interventions
  • Cut waste by printing at half scale with automatic sheet feeder
  • No LAN needed-move this MFP any time, any place-your Wi-Fi signal can reach with wireless connectivity
HP Designjet T830 MFP - 36 inch at a glance ...
Printer Type
PRINTER TYPE
HP Thermal Inkjet
Print Speed
SPEED:
Print Time Line Drawing: 25 sec/page on A1/D (economode).
Print Speed Line Drawing: 82 A1/D prints per hour (economode)
Printer's Inks
INKS:
Ink Type: Dye-based (C, M, Y); pigment-based (mK)
Ink Cartridge Configuration: 4 individual cartridges (cyan, magenta, yellow, matte black)
Printer's Media
MEDIA:
Rolls: 11 to 36" (27.9 to 91.4 cm)
Sheets: 8.3 x 11 to 36 x 74.7" (21 x 27.9 to 91.4 x 189.7 cm)
Standard sheets: A4, A3, A2, A1, A0 (A, B, C, D, E)
Roll: 11 to 36" (27.9 to 91.4 cm)
Roll: External Diameter: 3.9" (99.1 mm)
Media Thickness: Up to 11.8 mil (0.3 mm)
FULL
SPECIFICATIONS:
Specifications Data Sheet

HP Designjet T830 MFP - 36 inch

Specifications
INK CARTRIDGES,
PRINTHEADS, ETC. :
Specifications Data Sheet
HP Designjet T830 MFP - 36 inch
Ink Supplies
Overview:

Printing Technology: HP Thermal Inkjet
Size: 36"
Maximum Resolution: 2400 x 1200 dpi
Print Speed: Print Time Line Drawing: 25 sec/page on A1/D (economode).
Print Speed Line Drawing: 82 A1/D prints per hour (economode)
Ink Type: Dye-based (C, M, Y); pigment-based (mK)
Ink Cartridge Configuration: 4 individual cartridges (cyan, magenta, yellow, matte black)
Ink Cartridge Capacity: 40 to 300 mL
Printhead: C, M, Y, mK
Minimum Line Width: 0.8 mil (0.02 mm) (HP-GL/2 addressable)
Guaranteed Minimum Line Width: 2.8 mil (0.07 mm) (ISO/IEC 13660:2001
Applications: Line drawings, Renderings, Presentations
Memory: 1 GB
Paper Handling: Sheet feed, roll feed, input tray, media bin, automatic cutter
Paper Types: Bond and coated paper (bond, coated, heavyweight coated, recycled, plain, bright white), technical paper (natural tracing, vellum), film (clear, matte), photographic paper (satin, gloss, semigloss, premium, polypropylene), self-adhesive (adhesive, polypropylene)
Media Sizes: Standard:
Rolls: 11 to 36" (27.9 to 91.4 cm)
Sheets: 8.3 x 11 to 36 x 74.7" (21 x 27.9 to 91.4 x 189.7 cm)
Standard sheets: A4, A3, A2, A1, A0 (A, B, C, D, E)
Roll: 11 to 36" (27.9 to 91.4 cm)
Roll: External Diameter: 3.9" (99.1 mm)
Media Thickness: Up to 11.8 mil (0.3 mm)
Scanner:
Speed: Color: Up to 1.5 in/sec (3.81 cm/sec) Grayscale: Up to 4.5 in/sec (11.43 cm/sec)
Scan Resolution: 600 dpi
Maximum Scan Size: 36 x 109" (91.4 x 276.9 cm)
Minimum Scan Size: 5 x 5" (12.7 x 12.7 cm)
Thickness: 31.5 mil (0.8 mm)
Copier:
Reduction/Enlargement: 50 to 400%
Copy Resolution: 600 dpi
Number of Copies: Up to 99 copies
Connectivity:
Interfaces: Gigabit Ethernet (1000Base-T), Wi-Fi, Hi-Speed USB 2.0
Printer Language: HP-GL/2, HP-RTL, TIFF, JPEG, CALS G4, HP PCL 3 GUI, URF
Printing Paths: Printer driver, email printing, Apple AirPrint, Android Print Service, print from USB
Mobile Printing Features: Wi-Fi Direct and local Wi-Fi connectivity to enable mobile printing and scanning via HP ePrint, Apple AirPrint and HP All-in-One printer remote App. Supports printing from most smartphones and tablets using Android and iOS operating systems
Drivers: HP-GL/2, HP-RTL drivers for Windows; HP PCL 3 GUI driver for Mac OS X and Windows


HP Designjet T830 MFP - 36 inch
ADVERTISED PRICE:
$5,995
